Art: USW-AggregationEAN: 810010074331

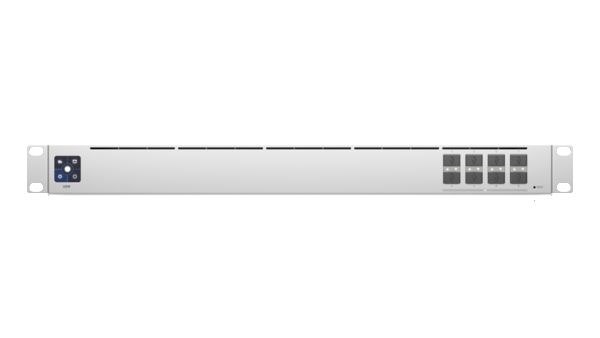

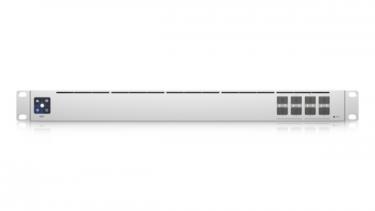

Ubiquiti UniFi Switch Aggregation (USW-AGGREGATION)
Toon alle:
Networking
Beschrijving
Ubiquiti UniFi Switch Aggregation
Merk: Ubiquiti
UniFi Aggregation Switch is a managed Layer 2 switch with eight 10G SFP+ ports. Featuring a compact 4.7" depth and fanless design, it supports high-bandwidth links to provide link aggregation for higher capacity and increased availability.
- (8) 10G SFP+ Ports
- 160 Gbps switching capacity
- 1.3" Touchscreen with AR switch management
- Fanless, 4.7" depth compact enclosure
- 1U Rackmountable (kit included)
- Managed by UniFi Network Controller
Specifications
| Dimensions | 442.4 x 120 x 43.7 mm |
| Weight 2.65 kg 2.74 kg | 2.65 kg 2.74 kg |
| Enclosure Material | SGCC Steel |
Hardware
| Total Non-Blocking Throughput | 80 Gbps |
| Switching Capacity | 160 Gbps |
| Forwarding Rate | 119.04 Mpps |
| Max. Power Consumption | 30W |
| Power Method | Universal AC Input: 100-240VAC, 50/60 Hz |
| Power Supply | AC/DC, Internal, 36W |
| Management Interface | Ethernet In-Band |
| Modes | SMB Layer 2 Gigabit Ethernet Switch |
| ESD/EMP Protection | Air: +/- 16kV, Contact: +/- 12kV |
| Operating Temperature | -5 to 40 C |
| Operating Humidity | 10 - 90% Noncondensing |
| Certifications | CE, FCC, IC |
Led
| System (1) Bootup Animation Firmware Upgrade Icon Steady White Steady Blue SFP+ | Bootup in Progress Firmware Upgrading Factory Defaults, Awaiting Adoption Device is Adopted White: 10G, 1G |
