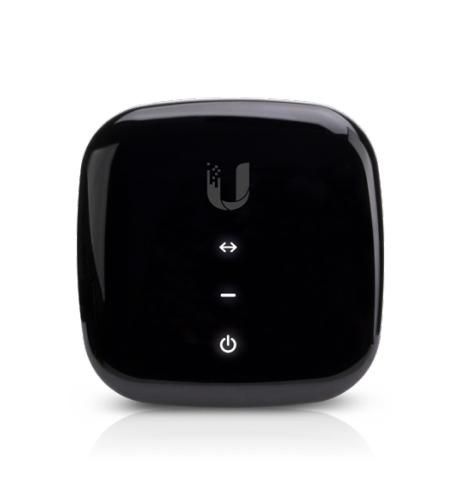

Ubiquiti UFiber Active Ethernet (UF-AE)

ubiquiti UFiber Active Ethernet

Merk: Ubiquiti

The UFiber Active Ethernet is a 1 Gbps fiber-to-copper media converter; it allows ISPs to deliver active fiber to a customer's premises and connect it to affordable SOHO network equipment lacking SFP ports. Its compact design allows the UF-AE to be discreetly integrated into any environment.

• Module Compatibility
The versatile UF-AE connects any SFP or SFP+ module at the maximum speed of 1 Gbps. All UFiber SFP or SFP+ modules are supported.

• PoE Convenience
The UF-AE is powered by 24VDC passive PoE or 802.3af active PoE.

• Supported Speeds
1 Gbps fiber uplink speeds and 10/100/1000 Ethernet speeds are supported.

• Status LEDs
Intuitive LEDs indicate link and speed status.

Indoor Installation

Use the included bracket to easily mount the UF-AE on a wall.

Specificaties UF-AE

Dimensions: 76.5 x 76.5 x 26.8 mm (3.01 x 3.01 x 1.06)
Weight: 70 g (2.47 oz)
Networking Interfaces: (1) 1 Gbps SFP Port (1) 10/100/1000 Mbps RJ45 Port
Power Method: 802.3af PoE: (Pins 1, 2+; 3, 6-) 24V Passive PoE: (Pins 4, 5+; 7, 8-)
Power Supply: 802.3af PoE or 24V Passive PoE Device (Power supply not included!)
Max. Power Consumption: 1.5W
Supported Voltage Range: 16 to 57V
LEDs: (1) Ethernet, (1) Optical Signal, (1) Power
Operating Temperature: -40 to 60 C (-40 to 140 F)
Operating Humidity: 10 to 90% Noncondensing
ESD/EMP Protection: +/- 12kV Contact/Air
Certifications: CE, FCC, IC

Package Contents

UFiber Active Ethernet, Wall Mount Bracket, Screws (4), Screw Anchors.

The UF-AE requires an active fiber SFP module and does not support passive GPON SFP modules!
