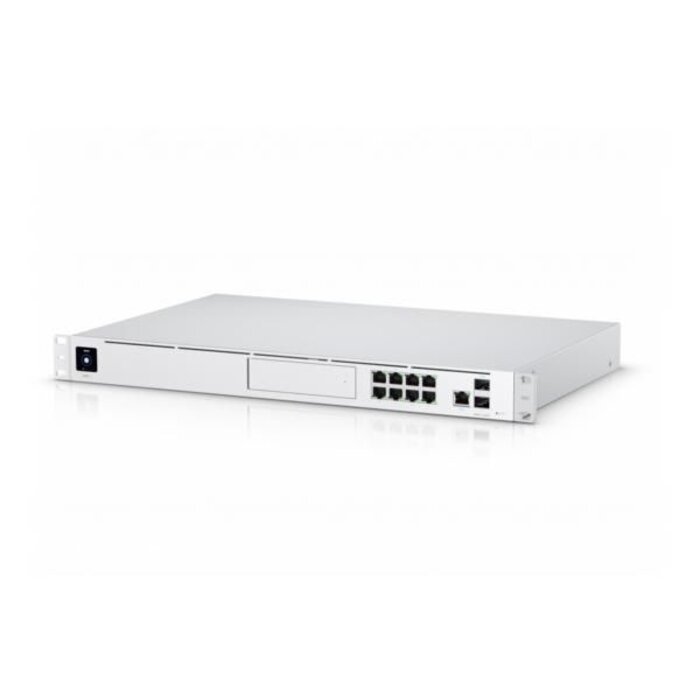

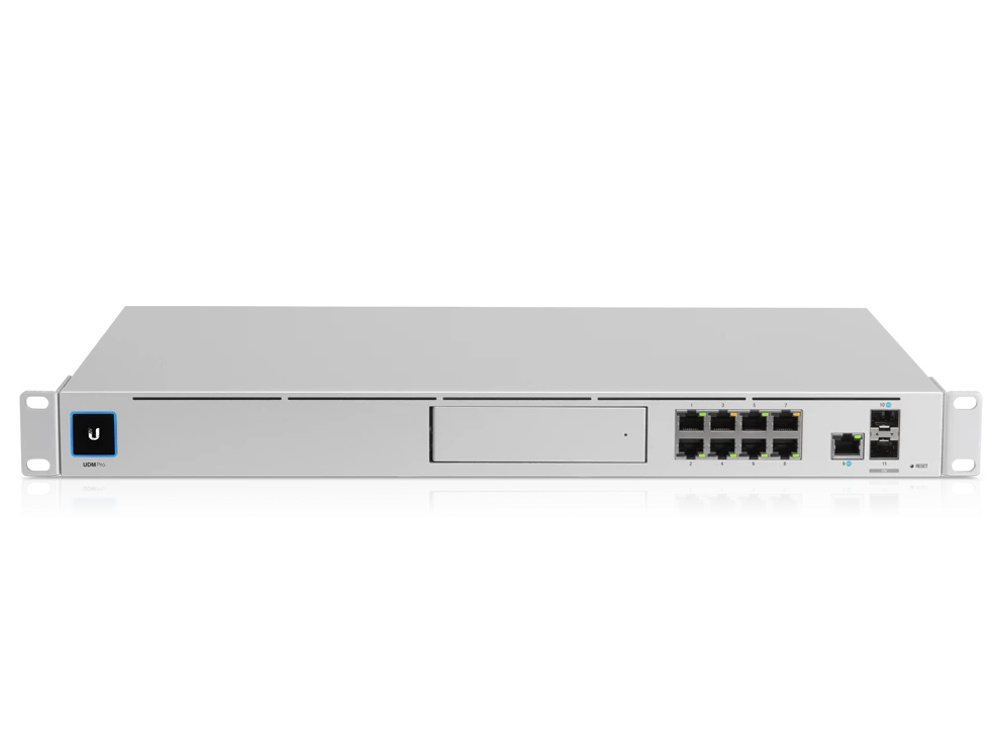

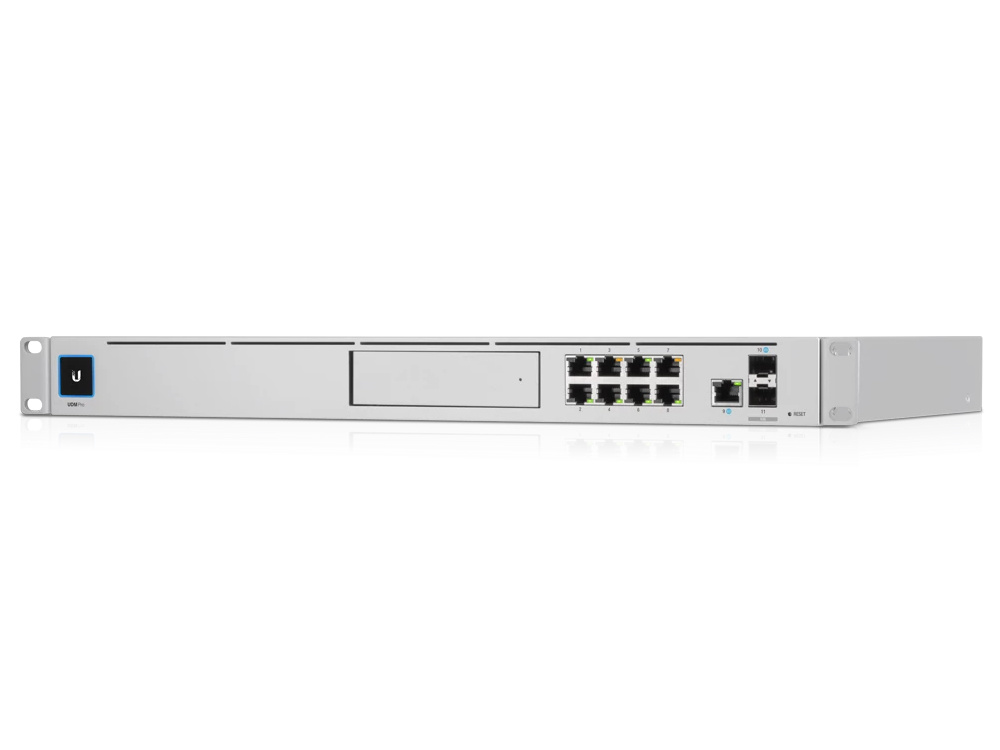

Ubiquiti UniFi Dream Machine Pro - UDM-PRO (UDM-PRO)

Merk: Ubiquiti

UniFi Dream Machine Pro (UDM-Pro) is an all-in-one enterprise network appliance. UDM-Pro integrates all current and upcoming UniFi controllers with a security gateway, 10G SFP+ WAN, 8-port Gbps switch and off-the-shelf 3.5" HDD support.

Kenmerken Ubiquiti Dream Machine Pro

• All-in-one 1U rack appliance for small to medium sized businesses
• Combines new UniFi OS with 8-port switch and security gateway
• UniFi Protect video surveillance NVR with off-the-shelf 3.5" HDD support
• Enterprise-class IPS/IDS, DPI, and Wi-Fi AI capabilities
• Powered by fast 1.7 GHz quad-core processor

Specifications UDM-Pro

Dimensions: 442.4 x 43.7 x 285.6 mm (17.42 x 1.72 x 11.24")
Weight: 3.90 kg (8.60 lb)
With Brackets: 3.99 kg (8.80 lb)
Interfaces:
- Networking: (8) 10/100/1000 RJ45 LAN Ports, (1) 10/100/1000 RJ45 WAN Port, (1) 1/10G SFP+ LAN Port, (1) 1/10G SFP+ WAN Port, Ethernet In-Band
- Management: (1) Bluetooth BLE
IDS/IPS Throughput: 3.5 Gbps
Processor: Quad ARM Cortex-A57 Core at 1.7 GHz
System Memory: 4 GB DDR4
On-Board Flash Storage: 16 GB eMMC
Max Power Consumption: 33W
Voltage Range: 100 to 240VAC
Power Method: (1) Universal AC Input, 100-240VAC, 50/60 Hz, (1) RPS DC Input
Power Supply: Internal 50W/12V
LEDs:
- HDD:Activity
- RJ45:Link/Speed/Activity
- SFP+:Link/Speed/Activity
ESD/EMP Protection: Air: +/- 16 kV, Contact: +/- 12 kV
Operating Temperature: -10 to 40 C (14 to 104 F)
Operating Humidity: 5 to 95% Noncondensing
Certifications: CE, FCC, IC

Package Contents

UniFi Dream Machine Pro, Rack-Mount Brackets (2), Bracket Screws (8), Mounting Screws (4), Cage Nus (4), Security Screw, 2.5" HDD Screws (4), Power Cord, Rubber Feet (4).
