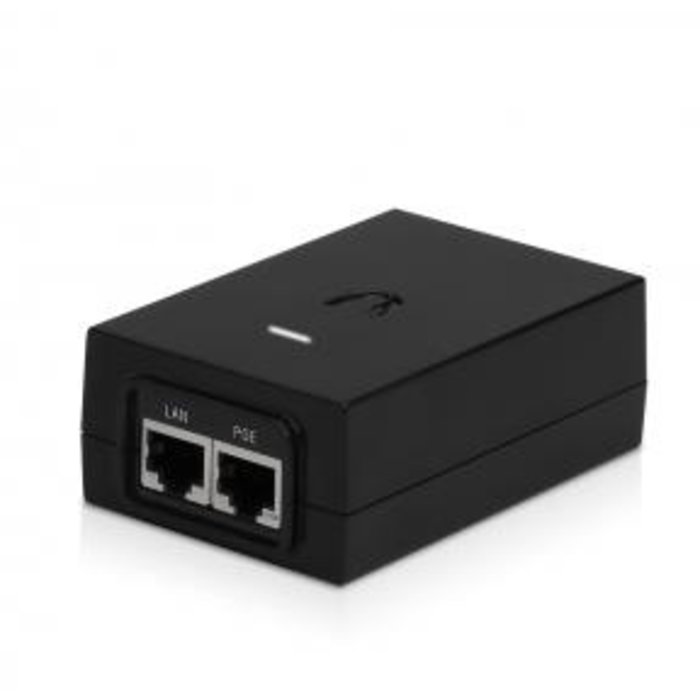

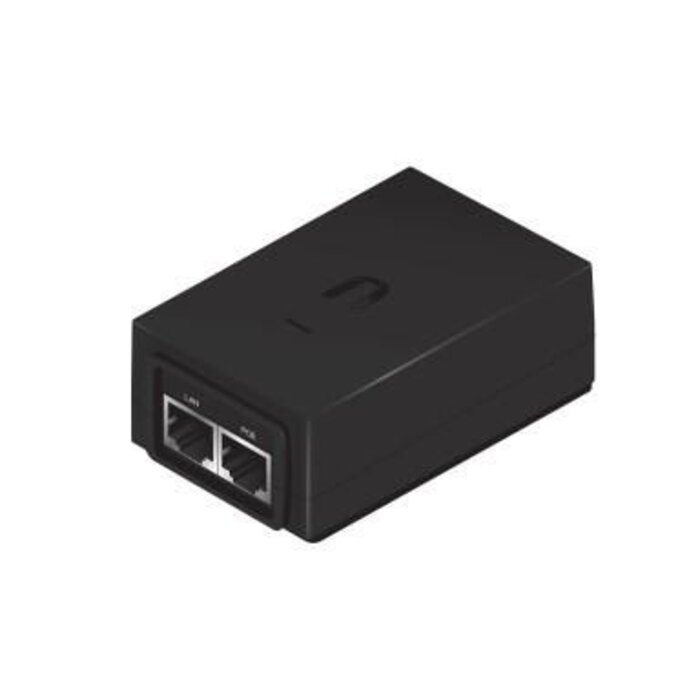

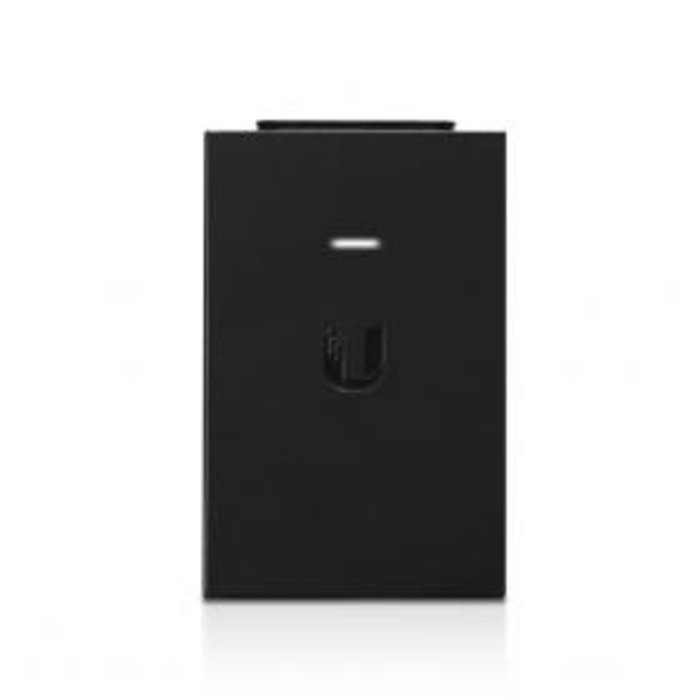

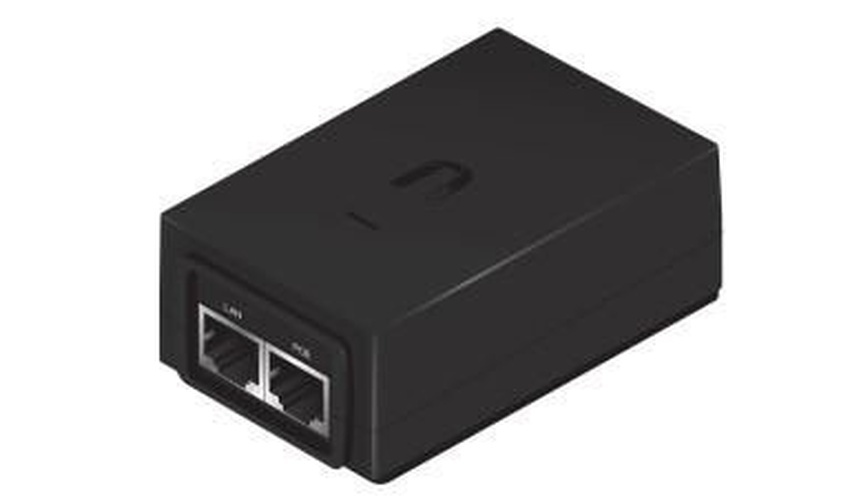

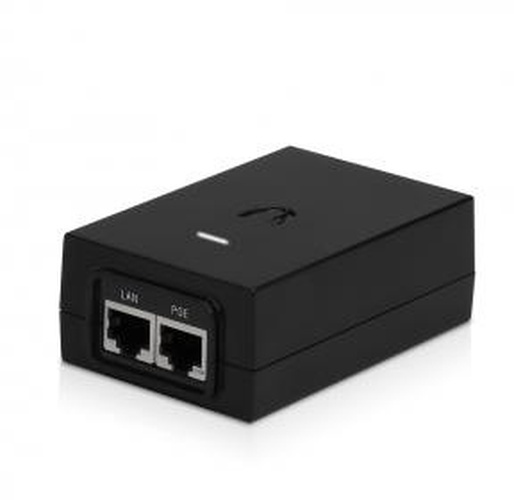

Ubiquiti Power over Ethernet injector 24 Volt (30 Watt) (POE-24-30W)

ubiquiti Power over Ethernet injector 24 Volt (30 Watt)

Merk: Ubiquiti

Ubiquiti PoE Adapters provide a variety of features to help protect your PoE devices:

• Surge protection
• Clamping protection
• Maximum surge discharge
• Peak pulse current
• AC cable with earth ground

Specifications Power over Ethernet injector 24 Volt (30W)

Dimensions: 94 x60x33 mm (3.70x2.36x1.30")
Weight: 156 g (5.5 oz)
Output Voltage: 24VDC @ 1.25A
LAN Activity Indicator: No
Gigabit LAN Port: Yes
Remote Reset Capability: No
Reset Button: No
Rated Voltage: 100-240VAC @ 50/60Hz
Input Current: 0.6A @ 120VAC,, 0.4A @ 240VAC
Inrush Current: <60A Peak @ 120VAC, <120A Peak @ 230VAC
Efficiency: 83+%
Output Ripple: 1% Max.
Switching Frequency: 65 kHz
4-Pair Powering: Pins 1, 2, 4, 5 (+) and, Pins 3, 6, 7, 8 (-)
Operating Temperature: 0 to 40 C (32 to 104 F)
Storage Temperature: -30 to 70 C (-22 to 158 F)
Operating Humidity: 35 to 95% Noncondensing
AC Connector: IEC-320 C6
Data IN / POE: RJ45 Shielded Socket
Surge Protection: Difference and Common Mode
Clamping Protection: 11V Data, 60V Power
Max. Surge Discharge: 1500A Power
Peak Pulse Current: 36A Data
Shunt Capacitance: <5 pF data
Response Time: <1 ns
Certifications: CE, FCC, IC, UL
