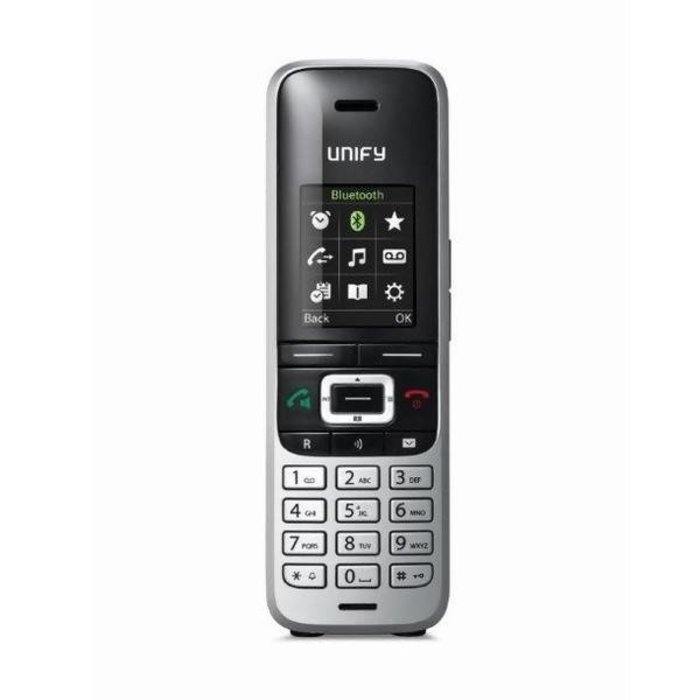

Unify OpenScape S5 DECT Handset (L30250-F600-C500)

Unify Openscape S5 Dect handset

Merk: Unify

De OpenScape DECT-telefoon S5 is de opvolger van de Gigaset S4 professional.

• De microfoon / de zenderfrequentie instellen in maximaal 4 stappen.
• Gescheiden compartiment voor de batterij, zodat deze eenvoudig te vervangen is.
• Geïntegreerd trilsignaal.
• Akoestisch signaal (optioneel) bij het verlaten / opnieuw aanmelden bij het DECT netwerk.
• Automatische toetsenblokkering (optioneel): schakelt automatisch uit / aan bij inkomende oproepen.
• Overdracht van de Caller ID (CLIP) via Bluetooth (indien ondersteund door de headset).
• Inkomende oproepdrempel in de lader (optioneel).
• Telefoonnummers kunnen worden gebruikt voor speed dial / sneltoetsen op de 2 softkeys.

Belangrijkste kenmerken Openscape S5

De volgende tabel geeft een overzicht. Deze lijst is niet uitputtend. Raadpleeg de gedetailleerde gebruiksaanwijzing voor meer informatie.

Mobility Features

Multi-cell capability

• Roaming
• Seamless connection Handover during a call
• Bearer handover in case of disturbances
• Display message when leaving the radio network

Security

• Encrypted voice transmission regarding DECT standard
• Secure system logon

Multi-DECT system capability option for parallel registration of the handset at up to four DECT systems

Features van de OpenScape DECT Phone S5 handset

Keypad

• Illuminated keypad
• Combined accept call/hands-free key
• MWI (Message Waiting Indicator) key
• 5-way navigation key
• Keypad lock on/off
• Key for all ringers off
• Talk key functions:
  • when pressed briefly: redial list
  • when held down: dial state
• Free programmable Display-key
• Combined microphone transmit volume/mute key
• R- (Flash) key
• 2-way side rocker switch for simple volume control during a call

Display

• Illuminated graphical display
• brilliant TFT display, 65k color, 128*160 pixel resolution
• Color scheme and screen saver settings
• Display of fonts and symbols in different situations in large fonts
• Configurable timeout of the display
• Display-Languages of the handsets:

German, English, French, Italian, Spanish, Portuguese, Dutch, Danish, Norwegian, Swedish, Finnish, Czech, Slovakia, Polish, Turkish, Greek, Hungarian, Russian, Croatian, Slovenian, Roman, Serbian, Catalan, Bulgarian, Bosnian, Ukrainian, Arabian

Display in idle state

• Status display:
  • Battery charging
  • Received field strength
  • Ring tones off
  • Warning tone on
  • Keypad lock on
  • Bluetooth activated
• Local editing of base station name
• Notices of (Display-indicate with the first off hock):
  • own call number
  • Date and time

Screensaver

• Picture out of media pool store
  • alternative to pictures: analogue or digital clock
• Screensaver replaces the notices in idle

Settings

• Handset is preset
• Individual settings
  • Fast access on functions and numbers
  • Belay of numeric key/ display key
  • Display: Language, Color-Schema, Contrast, Illuminating, Screensaver
  • Automatic Call acceptance on/off
  • handsfree-/earpiece volume
  • ring tones, melodies

Media Pool administered:

• Monophonic ring tones (Sounds)
• Polyphone melodies (Sounds)
• Pictures for:
  • Screensaver
  • Caller pictures (ClIP pictures)

Alarm clock

• activated/deactivated
• Period: Monday – Friday or daily
• Wake-up call is signaled with selected Sound

Appointments (Calendar)

• They can remember let up to 30 appointments
  • Appointments of the day are indicated,
  • Appointment can be supplemented with text,
  • Appointment call is signaled with selected Sound,
  • Indicated text, date and time are indicated.
• List of missed appointments

Phone book

• Storage possibility of the directory
  • Up to 500 entries for all directories
  • Fast access on a number (speed dialing)
  • Up to three phone numbers with accompanying name, surname (private/office/mobile), e-mail address, appointments with signaling, VIP-notation, CLIP pictures
• phone book administration via PC (Gigaset QuickSync = PC application)
  • via Bluetooth-Interface
  • via Mini- USB interface
• Saving/loading phone book data from/to HiPath Manager (HiPath-/OpenScape- Cordless Enterprise)
• Access to System phone book
  • LDAP system telephone database (only with HiPath Cordless Office)
  • HiPath Manager (HiPath-/OpenScape- Cordless Enterprise)

Message signaling

• Illuminated MWI (Message Waiting Indication) key alerts users of new messages
• Signaling of the new message through press the MWI-key

Call signaling

• Automatic call acceptance when the handset is removed from the charging unit (configurable)
• Visual/acoustic call signaling
• Display of call number and caller name
• Distinction between internal and external calls
• Ring tones and melodies:
  • 5 standard ringer tones
  • 21 polyphonic ringer melodies
• Ring tones can be deactivated while attention tone is activated
• Setting of different ringers for internal and external calls
• Volume can be set in 5 steps plus crescendo

Handset lock

• with 4-digit PIN

Battery

• 2 Nickel-Metal-Hydride „AAA“ Micro batteries
• Approved capacity: 550-1000mAh
• Two approved batteries are supplied with the phone
• Charging
  • in power-off mode
  • in power-off mode with activated PIN protection
  • in operating mode
• Low battery warning tone (configurable)

Headset ¹
Headset connection via:

• Corded: 2,5 mm jack
• Cordless: Bluetooth
• Tested Corded- Headsets (please consider the adapter cable):
  • Plantronics CHS142N
  • Plantronics HW291N/A (requires adapter cable 2.5mm jack to QD – Plantronics P/N 64279-02)
  • Jabra BIZ 2400 Mono 3 in 1
  • Jabra BIZ 2300 Mono
  • Jabra BIZ 1900 Mono
• Tested Cordless (Bluetooth)- Headsets:
  • Plantronics Blackwire 720
  • Plantronics Voyager Legend UC
  • Plantronics Voyager Edge/R
  • Plantronics M55
  • Jabra Supreme UC
  • Jabra Motion UC +
• Hearing aide compatible (HAC)

Accessories (e.g. carrying aids) ²

• One Belt clip is supplied with the phone

PC Interface

• Bluetooth, Mini- USB
• Bluetooth Specification: V2.1, the following profiles are available:
  • Headset-HSP, Data-SPP, Handset-HFP, Object-Push- profile OPP

PC Application

• Gigaset QuickSync
  • Phone book synchronization
  • Loading from Screensaver, CLIP-pictures, melodies and ringer tones

Compatible with HiPath Positioning System (HPS)

• Localization of mobile users (only with HiPath-/OPenScape Cordless Enterprise) using HiPath Positioning System

PC-Software (Gigaset QuickSync)

• Download of Gigaset QuickSync software, available for Microsoft Windows 32/64 bit and Apple MacOS operative systems.

The OpenScape DECT Phone S5 handset can be connected to the following systems:

HiPath 4000

• HiPath Cordless Enterprise from R3.42.0-CV422

OpenScape 4000

• OpenScape Cordless Enterprise from R0.4.0-CV020

HiPath 3000

• HiPath Cordless Office from V9_R2.8.1_006

OpenScape Business

• HiPath Cordless Office from V1R1.3.0
