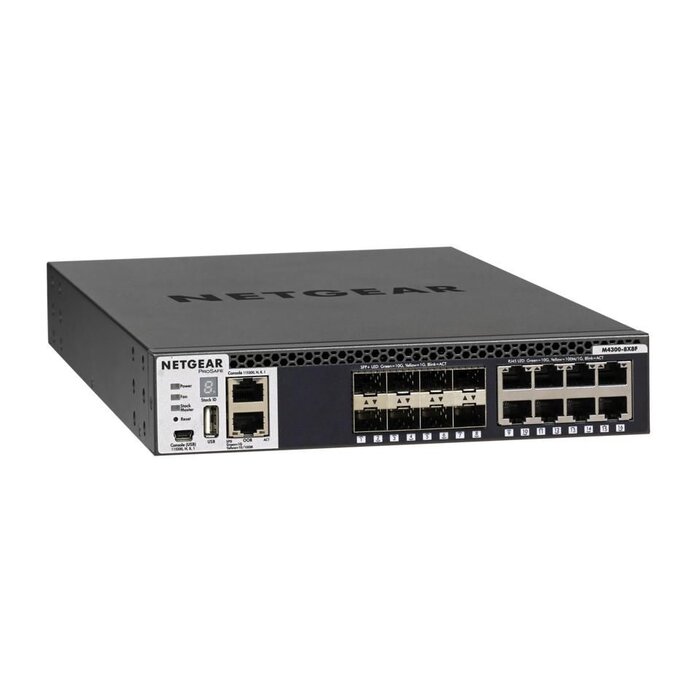

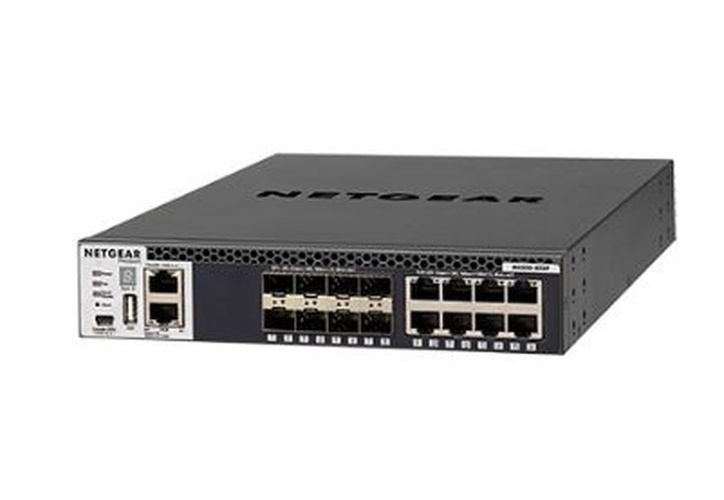

Netgear M4300-8X8F 10G Managed Switch (XSM4316S-100NES)

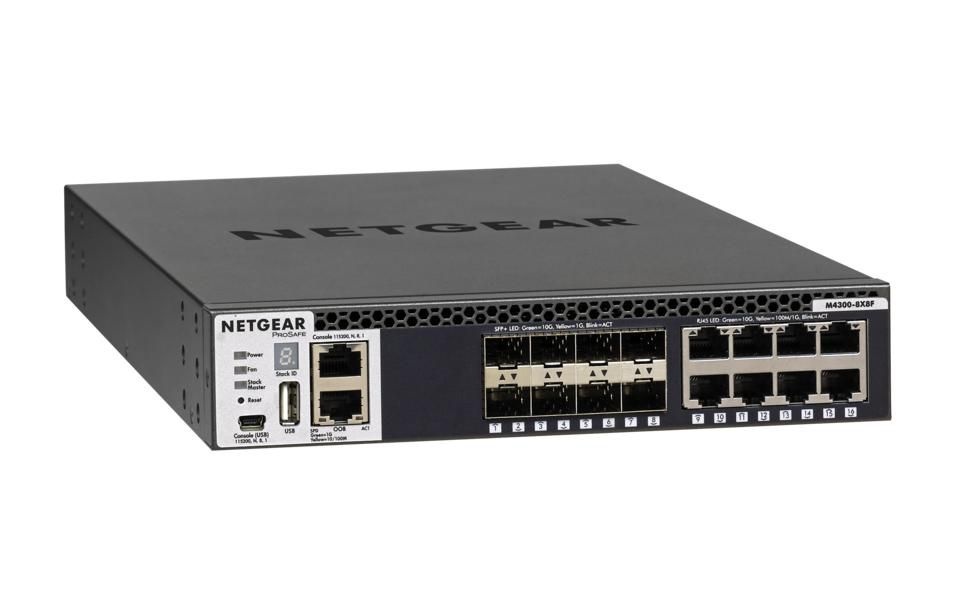

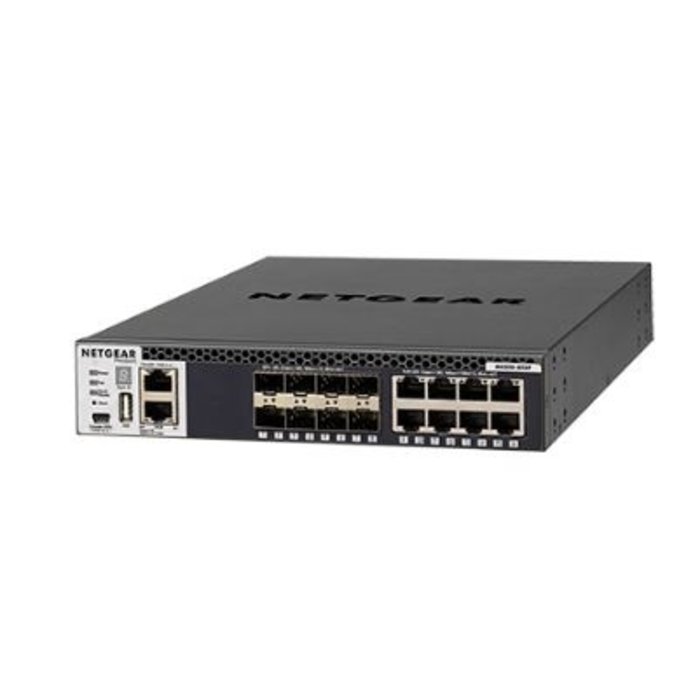

Netgear M4300-8X8F Managed Switch

Model Description:

• Half-Width 16x10G Stackable Managed Switch with 8x10GBASE-T and 8xSFP+

Ordering Number:

• XSM4316S

Acoustics:

• 36.9dB @ 25°C (77°F)

Power Consumption (Max):

• 49 Watts

1G RJ45 Ports:

• -

10G RJ45 Ports:

• 8 x 10GBASE-T (Fast Ethernet, 1G and 10G speeds)

10G Fiber SFP+ Ports:

• 8 x SFP+ (1G and 10G speeds)

Power over Ethernet:

• -

PoE Budget (Watts):

• -

Feature Set:

• Layer 3 (static, policy-based and RIP OSPF VRRP PIM dynamic routing)

Management Ports:

• 1G Ethernet service port for out-of-band management (OOB, RJ45)
• RS232 straight-through serial RJ45 for local management console
• Mini-USB port for local management console
• USB port for local storage, logs, configuration or image files

Form Factor:

• Half-Width enabling one or two 10G switches in a single rack space for redundant top-of-rack
• 1 modular PSU

Key features:

• Cost effective 1G access layer in campus LAN networks, and high performance 10G distribution layer for midsize organizations networks
• Advanced Layer 2, Layer 3 and Layer 4 feature set - no license required - including Policy Based Routing, RIP, VRRP, OSPF and PIM
• Innovative mixed "Spine and Leaf", 1G and 10G stacking with nonstop forwarding and hitless failover redundancy
• Low acoustics, half-width 16-port and 24-port 10G models can be paired in a single rack space for redundant Top of Rack
• Up to 384 (Gigabit) ports, or 384 (10 Gigabit) ports, or a combination of both in a single logical switch
• PoE+ (30 watts per port) with hot swap, redundant power supplies and full provisioning
• 48-port 10G models ultra-low latency and scalable table size with 128K MAC, 8K ARP/NDP, 4K VLANs, 12K routes
• Mixed Stack of 1G and 10G models provides 16K MAC, 2K ARP/NDP, 4K VLANs and 512 routes
• SDN-Ready OpenFlow 1.3 support for maximum investment protection

Software:

• Advanced classifier-based, time-based hardware implementation for L2 (MAC), L3 (IP) and L4 (UDP/TCP transport ports) security and prioritization
• Selectable Port-Channel / LAG (802.3ad - 802.1AX) L2/L3/L4 hashing for fault tolerance and load sharing with any type of Ethernet channeling
• Voice VLAN with SIP, H323 and SCCP protocols detection and LLDP-MED IP phones automatic QoS and VLAN configuration
• Efficient authentication tiering with successive DOT1X, MAB and Captive Portal methods for streamlined BYOD
• Comprehensive IPv4/IPv6 static and dynamic routing including Proxy ARP, OSPF, Policy-based routing and automatic 6-to-4 tunneling
• Enhanced IPv4/IPv6 multicast forwarding with IGMPv3/MLDv2 ASM and SSM Proxy and Control Packet Flooding protection
• High performance IPv4/IPv6 multicast routing with PIM timer accuracy and unhandled PIM (S,G,rpt) state machine events transitioning
• Advanced IPv4/IPv6 security implementation including malicious code detection, DHCP Snooping, IP Source Guard protection and DoS attacks mitigation
• Innovative multi-vendor Auto-iSCSI capabilities for easier virtualization optimization

Availability:

• Dual redundant, modular power supplies equipping full width models contribute to business continuity management
• Vertical or horizontal flexible stacking with management unit hitless failover and nonstop forwarding across operational stack members
• Spine and leaf architecture with every leaf switch (1G access switches) connecting to every spine switch (distributed 10G "core" switches)
• Stacking and distributed link aggregation allow for multi-resiliency with zero downtime and load balancing capabilities
• Link Dependency new feature enables or disables ports based on the link state of different ports
• Per VLAN Spanning Tree and Per VLAN Rapid Spanning Tree (PVSTP/PVRSTP) offer interoperability with PVST+ infrastructures

Management:

• DHCP/BootP innovative auto-installation including firmware and configuration file upload automation
• Industry standard SNMP, RMON, MIB, LLDP, AAA, sFlow and RSPAN remote mirroring implementation
• Service port for out-of-band Ethernet management (OOB)
• Standard RS232 straight-through serial RJ45 and Mini-USB ports for local management console
• Standard USB port for local storage, logs, configuration or image files
• Dual firmware image and configuration file for updates with minimum service interruption
• Industry standard command line interface (CLI) for IT admins used to other vendors commands
• Fully functional Web console (GUI) for IT admins who prefer an easy to use graphical interface
• Single-pane-of-glass NMS300 management platform with mass-configuration support
