Ubiquiti Ethernet Surge Protector Gen2 (ETH-SP-G2)

Ubiquiti Ethernet Surge Protector Gen2

Ethernet Surge Protector Gen2 is an updated version of the original ETH-SP. Improves the surge protection performance significantly.

• ESD Protection for Outdoor PoE Devices
Damaging electrostatic discharge attacks and surges are diverted to the ETH-SP-G2 and safely discharged into the ground, so network devices are protected.

• Additional ESD Protection
All Ubiquiti airMAX devices are equipped with built-in ESD protection, so the ETH-SP-G2 adds another layer of protection to your outdoor, high-speed network.

• Plug and Play Installation
  Connect the ground and Ethernet cables in between your network devices.

Specifications ETH-SP-G2

Dimensions: 91 x 61 x 32.5 mm (3.58 x 2.4 x 1.28")
Weight: 80 g (2.82 oz)

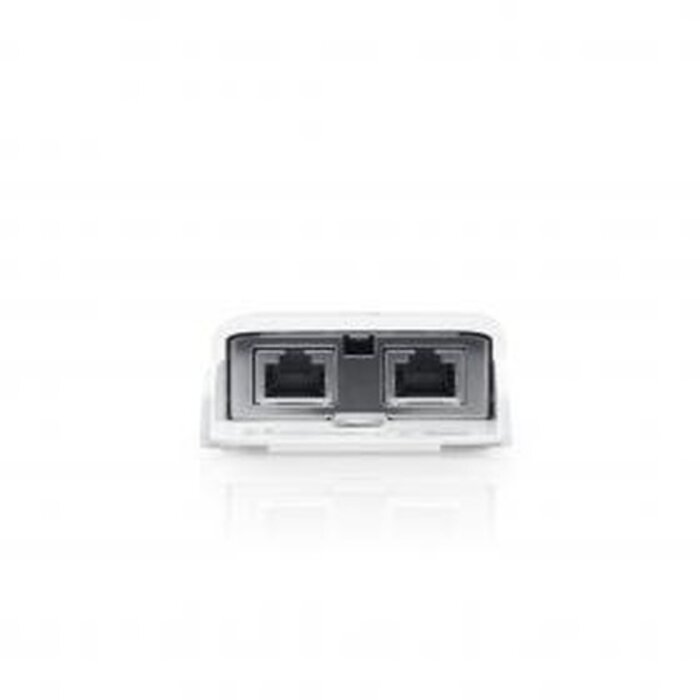

Interface Connections: (2) RJ45 Female Connectors
DC Spark-Over Voltage: 90V @ 100V/µs
Maximum Impulse Spark-Over Voltage: 700V @ 1kV/µs
Discharge Current: 10kA+
Maximum Insulation Resistance: 1G ohm @ 50V
Maximum Capacitance: 1.0 pF @ 1 MHz
Data Line Protection: RJ45 10/100/1000 Ethernet
IEEE 802.3af PoE Support: Yes
Shock and Vibration Certification: ETSI300-019-1.4 Standard
Operating Temperature: -30 to 65 C (-22 to 149 F)
Operating Humidity: 10 to 90% Noncondensing
