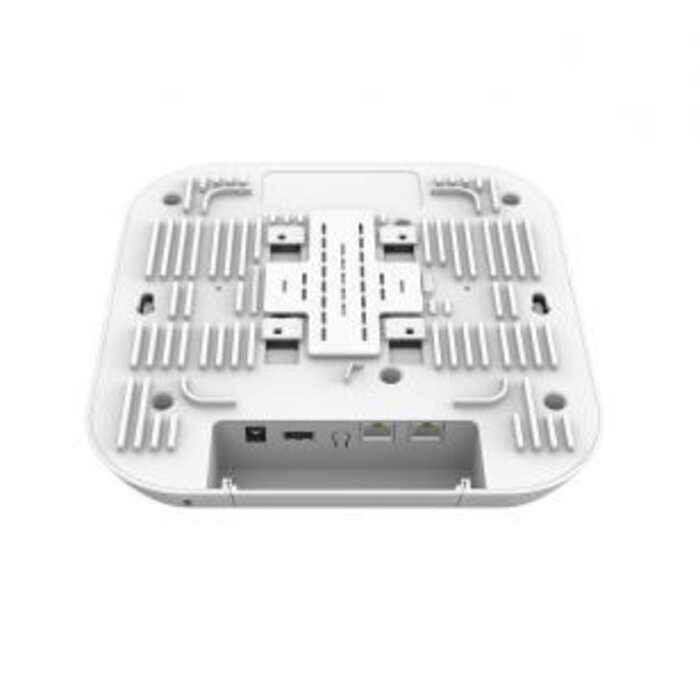

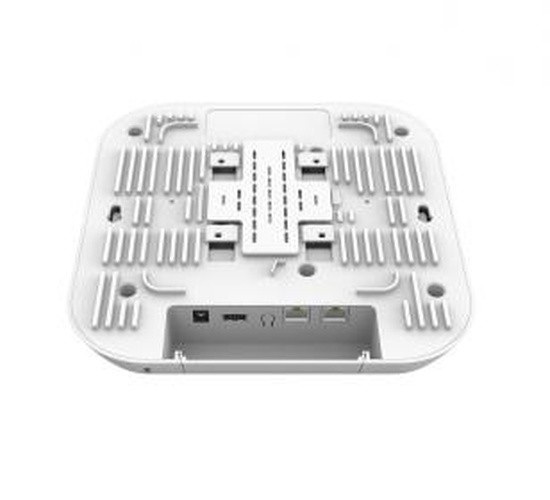

Cambium Networks XV3-8 Tri-Radio WiFi 6 (XV3-8X00A00)

€967,99 Excl. btw
€1.171,27 Incl. btw
Op voorraad (47 Producten)
Op werkdagen voor 16:30 uur besteld, de volgende werkdag in huis
Voor counting... uur besteld, morgen in huis
Artikelcode XV3-8X00A00
EAN
Gerelateerde producten
Informatie

Cambium XV3-8 Tri-Radio WiFi 6



Let op: Dit product wordt geleverd zonder PoE injector!

The XV3-8 features a total of five (5) radios to deliver a nextgeneration network with edge services with high capacity and high density. Three data radios can be configured as two 5 GHz 4x4 plus one 2.4 GHz 4x4, or the two 5 GHz radios can be combined into a single 5 GHz 8x8 radio with the maximum power and performance of the 802.11ax standard. A dedicated network scanning radio provides continuous network monitoring to enhance security protocols, detailed network reports, and automatic RF optimizations. Add the Bluetooth Smart 4.1 IoT radio for BLE-based location services and you get a multi-radio, highcapacity Wi-Fi 6 AP designed for the most demanding networks in enterprise, education, retail, and public venues.

Quick Look:

  1. High-density Wi-Fi with software-defined radios (SDR)
  2. Five-radio architecture for edge services
  3. 6 Gbps aggregate data rate
  4. Dedicated scanning sensor, dual band
  5. Application policy control
  6. EasyPass with Microsoft Azure and Google G Suite integration




Specifications

Radios 2.4 GHz: 2.4 GHz:
5 GHz: 802.11 a/n/ac Wave 2/ax, 8x8 (or configure as two 4x4)
2.4/5 GHz scan, 1x1
2.4/5 GHz scan, 1x1
Wi-Fi 802.11 a/b/g/n/ac Wave 2/ax
SSID
Security
WPA3, WPA2 (CCMP, AES, 802.11i), WPA2
Enterprise (802.1x/EAP), WPA PSK (TKIP), Open
Max PHY Rate 2.4 GHz: 1,147 Mbps
5 GHz: 4,804 Mbps
Ports 1 x IEEE 802.3 10/100/1000 Mbps
1 x IEEE 802.3 10/100/1000 Mbps
Auto sensing MDIX
1 x USB 3.0
1 x Serial Console (4 pin)
Antenna 2.4 GHz: 5 dBi
5 GHz: 6.7dBi
2.4/5 GHz: sensor 5 dBi / 6.3 dBi
BLE 5 dBi
Max EIRP 2.4 GHz: 31 dBm
5 GHz: 36 dBm
Power Max power with USB/BLE, 35 W (802.3bt)
802.3at mode with USB/BT disabled
12 VDC power, 2.1 mm (.083 in)
barrel connector
Dimensions 235 mm x 235 mm x 42 mm
Weight 1,250 g
Security Kensington lock slot
LEDs Multi-color status LEDs
Ambient Operating
Temperature
0 C to 50 C
Storage Temperature -20 C to 70 C
Humidity 95% RH non-condensing
Mount Options Wall or ceiling, T-bar with included
locking bracket, ceiling tile plate
Certifications
(Compliance)
Wi-Fi Alliance 802.11 a/b/g/n/ac/ax, PP2.0,
FCC, IC, CE, EN 60601-1-2, EN 60950-1,
IEC 62368-1 Safety, EN 60601-1-2
Medical, EN 61000-4-2/3/5 Immunity, EN
50121-1 Railway EMC, EN 50121-4 Railway
Immunity, IEC 61373 Railway Shock &
Vibration, UL 2043 Plenum,
EN 62311 Human Safety/RF Exposure,
WEEE & RoHS
